LED Matrix Display - 32x08 - Green
Description

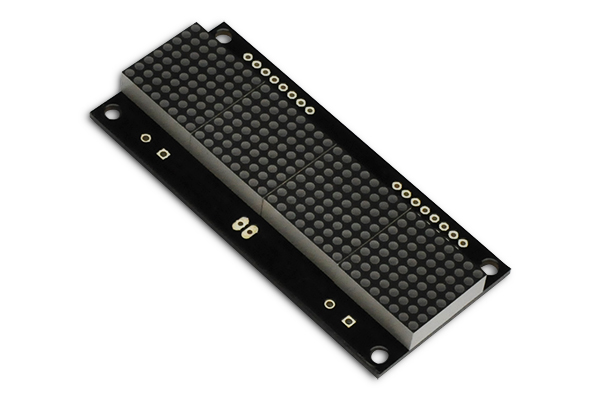

The LDP-83208S is a single colour 32 pixel by 8 pixel LED matrix display. The module is based on the TLC5920 from TI which allows all those LEDs to be controlled with only 7 microcontroller I/O lines. Pixels can show as black (that is, completely unlit), or gorgeous pure green. Of course, it uses a standard HUB08 connection, so you can use the PLT-1001 driver boards to control it.
This display is tiny! The LED module itself is only 20mm, giving you great resolution in a small space. Pixels are 1.9mm in diameter and are spaced 2.5mm apart.
These panels can be daisy chained horizontally to create a longer message display board.
Works great with our PLT-1001 and PLT-2001 driver boards.
Specification
Module: LDP-3208S-GREEN
Hackability: 100% (full datasheet and driver source code available)
Datasheet: LDP-3208S
PCB dimensions: 80mm x 36mm (3.15in x 1.42in)
LED Display dimensions: 80mm x 20mm (3.15in x 0.78in)
