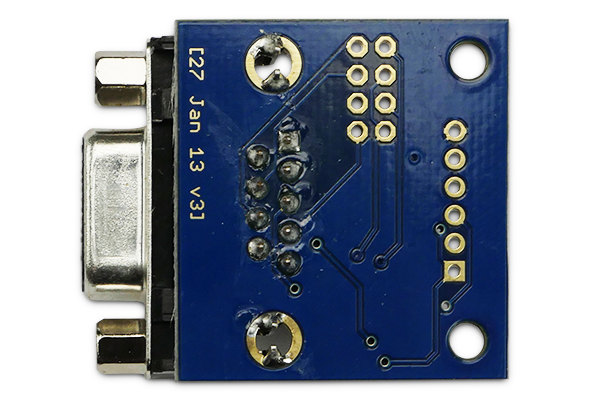

TTL Serial to RS232 Converter
TTL Serial to RS232 Converter
Description

Sometimes you just need to go back into proper RS232 land - and this little module allows you to do that without having to worry about what voltage you're running at.  If you're running at 5V or 3.3V, this converter will work for you, and also allows you to get access to two more signals (eg, CTS/RTS) as well as the essential TX/RX.

Component

MOD-1004v3

Description



MAX3232E based RS232 / TTL serial converter

Datasheets

MOD-1004 Datasheet

TI MAX3232E_Datasheet
